Video Out

To enable monitor out, follow these instructions:

1. Go to Preferences > Video Out.
2. Select a device.
3. Select the Channel, Pixel Type, and Resolution that you want based on your device.

4. Click OK.

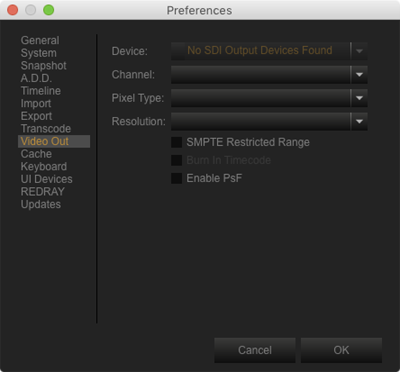

   Figure: Video Out Preferences

5. Click (Monitor Out) in the Control bar.

Compatible Monitor out Devices

The following monitor out devices are compatible with REDCINE-X PRO. Additional monitor out devices may be compatible, but have not yet been tested by RED.

• AJA^® KONA^® 4
• AJA KONA 3G
• AJA T-TAP^®
• AJA Io 4k
• AJA Io XT
• Blackmagic^® DeckLink cards
• RED ROCKET-X
  • 1.5G
  • 3G
  • DisplayPort
  • HDMI^®

NOTE: HDMI requires a DisplayPort connection.
