Look: Curve

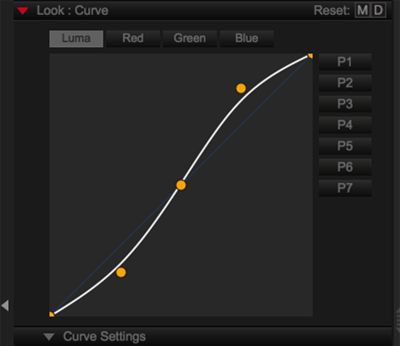

Figure: Look: Curve
Look: Curve enables you to adjust the highlights, lights, midtones, darks, and shadows to improve the Look of your R3D footage.
NOTE: To add the Look: Curve group to a panel, right-click in a panel and select Look: Curve.
This group allows you to adjust the following image characteristics:
|
Effect |
Range |
Default |
|---|---|---|
|
Highlights |
0.000 to 1.000 |
1.000 |
|
Lights |
0.000 to 1.000 |
0.750 |
|
Midtones |
0.000 to 1.000 |
0.500 |
|
Shadows |
0.000 to 1.000 |
0.000 |
Adjust the Tonal Curve
To adjust the tonal curve, choose one of the following methods:
- Tonal Curve: Click and drag the curve.
- Curve Settings: Expand Curve Settings to click and drag the sliders or enter a value.
Tonal Curve Presets
To create and use your own tonal curve preset, follow the instructions below:
- Go to the Look: Curve tab.
- Select a preset or adjust the tonal curve.
- Click and hold the preset number for three (3) seconds to save tonal curve settings to the preset.
