Look: Histogram

To add the Look: Histogram group to a panel, right-click in a panel and select Look: Histogram.

Histogram

The Histogram element displays red, green, and blue channel information for the current frame.

To change the mode, right-click the Histogram element and select a viewing option.

• Overlay: Displays all three (3) histograms overlaid together.
• RGB: Displays all three (3) histograms separately.
• Red: Displays the histogram for the red channel.
• Green: Displays the histogram for the green channel.
• Blue: Displays the histogram for the blue channel.
• Luma: Displays a Luma waveform.

NOTE: By default, the histogram is only available when the clip is stopped. To view the histogram during playback, go to Preferences > General and select Update Scopes on Playback.

Histogram Intensity

You can set the intensity of the histogram graph for each mode. Right-click the histogram graph and select an intensity. Range is 10 to 100. Default is 50.

Scopes

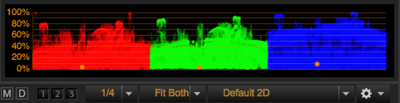

The Scopes element displays the waveform, or shape and form, of red, green, blue, and luma channels for the current frame. Scopes can be displayed in one of six (6) modes, and at intensities from 10% to 100%.

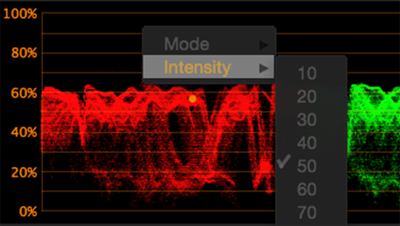

To change the mode and intensity, right-click the Scopes element and select a viewing option.

• Overlay: Displays all three (3) channels overlaid together.
• RGB: Displays all three (3) channels separately.
• Red: Displays the red channel.
• Green: Displays the green channel.
• Blue: Displays the blue channel.

NOTE: By default the scopes are only available when the clip is stopped. To view the scopes during playback, go to Preferences > General and select Update Scopes on Playback.
