Look: Image
Look: Image contains the primary image adjustment tools and sliders for viewing, color grading, and exporting R3D footage.
Most adjustments in Look: Image use the slider function. Click and drag the slider left or right to decrease or increase the value, respectively. Alternatively, enter a value into the value box next to the slider to select a specific level.
NOTE: To add the Look: Image group to a panel, right-click in a panel and select Look: Image.

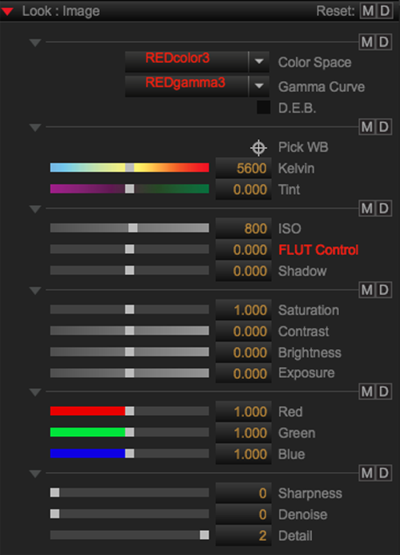

Figure: Look: Image
Look: Image groups include:
|
Look Image Group |
Details |
|---|---|
|
Color and Gamma Space |
|
|
White Balance Adjustments |
|
|
ISO, FLUT, Shadow |
|
|
Saturation, Contrast, Brightness, Exposure |
|
|
Red, Green, Blue Channels |
|
|
Sharpness, Denoise, Detail |
Color and Gamma Space
Color Space and Gamma Space enable you to set chrominance and luminance LUTs to express the color and gamma values of your RAW footage.
|
Effect |
description |
|---|---|
|
Color Space |
Determined by the final export format, such as TIFF, DPX, or XML |
|
Gamma Curve |
REDlogFilm Gamma Space setting is recommended as a neutral starting point for grading footage |
|
D.E.B. |
DRAGON Enhanced Blacks (D.E.B.) reduces red grain that affects midtones, darks, and shadows |
NOTE: RED ROCKET and RED ROCKET-X do not support D.E.B.
For more information, see the following tutorials:
- Color Management with Cinema
- Understanding REDlogFilm and REDgamma
- Intro to Grading with REDCINE-X PRO
NOTE: Color and Gamma Space settings for R3D files are set in-camera and captured in the R3D metadata. When an R3D is opened in REDCINE-X PRO, the Color and Gamma Space settings reflect the in-camera setting.
Color Space Options
NOTE: To view all color and gamma space options, go to Preferences > General and select the Show Advanced Controls check box.
- REDcolor
- REDcolor2
- REDcolor3
- REDcolor4
- DRAGONcolor
- DRAGONcolor2
- RedSpace
- Camera RGB
- REC 709
- REC 2020
- sRGB
- Adobe 1998
- XYZ
Gamma Space Options
NOTE: To view all color and gamma space options, go to Preferences > General and select the Show Advanced Controls check box.
- REDgamma
- REDgamma2
- REDgamma3
- REDgamma4
- REDLog
- REDlogfilm
- RedSpace
- Linear
- sRGB
- REC 709
- PDLog 685
- PDLog 985
- HDR-2084
- BT1886
- Log3G12
White Balance Adjustments
White Balance is the process of adjusting how color is rendered in an image so that objects that appear white in person also appear white in the image. You can set the Kelvin slider number to the color temperature of the scene. The slider graphic indicates how the image looks at that Kelvin value.
For more information, see the Using White Balance to Control Color Casts article.
White Balance allows you to adjust the following image characteristics:
|
Effect |
Description |
Range |
Default |
|---|---|---|---|
|
Pick WB |
Click the Pick WB crosshairs and select an area of the image that is approximately 18% gray |
N/A |
N/A |
|
Kelvin (Color Temperature) |
Adjust the RGB color matrix to compensate for the relative coolness or warmness |
1800 K to 9400 K |
5600 K |
|
Tint1 |
Adjust the RGB color matrix to compensate for yellow and green tinting1 |
–100.000 to 100.000 |
0.000 |
- This parameter is valuable when the ambient light source contains significant amounts of yellow and green, such as in environments with fluorescent lighting.
ISO, FLUT, Shadow, and DRX
This group allows you to adjust the following image characteristics:
|
Effect |
Description |
Range |
Default |
|---|---|---|---|
|
ISO |
Adjust the overall sensitivity of each pixel in the RAW image |
50 to 12,800 |
N/A |
|
FLUT Control |
Adjust ISO without clipping the highlights or crushing the shadows |
–8.000 to 8.000 |
0.000 |
|
DRX1 |
Dynamic Range Extension (DRX) attempts to recover clipped highlights |
0.000 to 1.000 |
1.000 |
- DRX is not available for DRAGON clips.
Saturation, Contrast, Brightness, and Exposure
This group allows you to adjust the following image characteristics:
|
Effect |
Range |
Default |
|---|---|---|
|
Saturation |
0.000 to 2.000 |
1.000 |
|
Contrast |
–1.000 to 1.000 |
0.000 |
|
Brightness |
–10.000 to 10.000 |
0.000 |
|
Exposure |
–7.000 to 7.000 |
0.000 |
Red, Green, and Blue Channels
This group allows you to adjust the following image characteristics independently:
|
Channel |
Description |
Range |
Default |
|---|---|---|---|
|
Red |
Increase/decrease the gain of the Red channel |
0.000 to 2.000 |
1.000 |
|
Green |
Increase/decrease the gain of the Green channel |
0.000 to 2.000 |
1.000 |
|
Blue |
Increase/decrease the gain of the Blue channel |
0.000 to 2.000 |
1.000 |
Sharpness, Denoise, and Detail
This group allows you to adjust the following image characteristics:
|
Effect |
Range |
Default |
|---|---|---|
|
Sharpness |
0 to 3 |
0 |
|
Denoise |
0 to 6 |
0 |
|
Detail |
0 to 2 |
2 |
