BRAIN
Figure: RED RAVEN BRAIN
The DSMC BRAIN® is the image processing center of the camera system and supports power, media, and other modules.
The only ports on the BRAIN are the DSMC2® Top Handle port and EVF/LCD ports. A port expander or power module is required to power the camera. All other input/ouput (I/O) ports are available only via expanders and other modules. This modular approach allows you to customize your camera and make use of the ports that are most applicable to your needs.
The RED® Tactical Hand Controller (T.H.C.) cannot pair directly to the camera. To use the T.H.C. with the camera, the T.H.C. needs to be connected to the W.M.D. (either wired or wirelessly). For more information about the T.H.C., see the RED 3-Axis System Operation Guide.
BRAIN Control: PWR/REC Key
- Fully press and hold the PWR/REC key for two (2) seconds to turn on/off.
- When the camera is on, fully press and then release the PWR/REC key to toggle record start/stop.
BRAIN LEDs
This section describes the LED functions for the camera.
NOTE: When the camera is powered only by battery and not AC power, the Power Status LED (PWR) on the expander or module does not turn on. You can press the button on the battery to check the battery charge level.
|
LED |
Color/Flashing |
Description |
|---|---|---|
|
Power Status LED (PWR) |
Off |
Camera off1 |
|
Green |
Camera on |
|
|
Amber flashing |
Camera on; 5 to 10 min of battery time available |
|
|
Amber |
Camera booting |
|
|
Red flashing |
Camera on; < 5 min of battery time available |
|
|
Red |
Camera shutting down |
|
|
Record Status LED (REC) |
Off |
No media present |
|
Green |
Ready to record |
|
|
Amber |
Finalizing |
|
|
Red flashing (slow) |
Media mounted with > 5% and ≤ 10% of media space available |
|
|
Red flashing (fast) |
Media mounted with ≤ 5% of media space available |
|
|
Red |
Recording |
|
|
Power Status LED (PWR) and Record Status LED (REC) |
Both green flashing |
Firmware update in progress |
|
Both red flashing |
Firmware update error |
- To prevent battery drain, the PWR LED does not illuminate when the camera is off and a power source is present.
BRAIN Connectors, Focus Hook

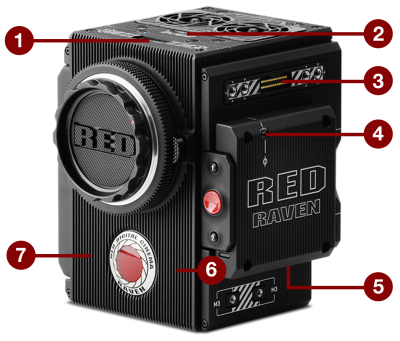

Figure: RED RAVEN BRAIN Ports and Features
This section describes the ports and features on the BRAIN.
NOTE: For more information on how to install the focus hook, go to Install the Focus Hook.
|
# |
Port/Item |
Description |
|---|---|---|
|
1 |
Primary EVF/LCD Port1 |
Mount a DSMC2 RED Touch LCD |
|
2 |
Top Handle Port |
Mount the DSMC2 Top Handle or DSMC2 Outrigger Handle. This is the only mounting option for the DSMC2 Top Handle or DSMC2 Outrigger Handle (it cannot be attached backward). |
|
3 |
Secondary EVF/LCD Port1 |
Mount a DSMC2 RED Touch LCD. The secondary LCD/EVF port and an HDMI® port cannot be used at the same time. Go to LCD/EVF 2 / HDMI Select. |
|
4 |
Focus Hook Mounting Point2 |
Mount the focus hook. Comes with a set screw installed to protect the threaded insert when the focus hook is not in use. |
|
5 |
Focus Hook Storage Location2 |
Store the focus hook or set screw |
|
6 |
Mic 1 |
Left audio channels: Ch1 and Ch3. Go to Audio System. |
|
7 |
Mic 2 |
Right audio channels: Ch2 and Ch4. Go to Audio System. |
- The DSMC2 LEMO Adaptor A allows you to mount other RED® displays.
- Install only the focus hook or set screw to this mounting point. Damage to the media bay or other components of the camera system caused by installing other devices is not covered under warranty.

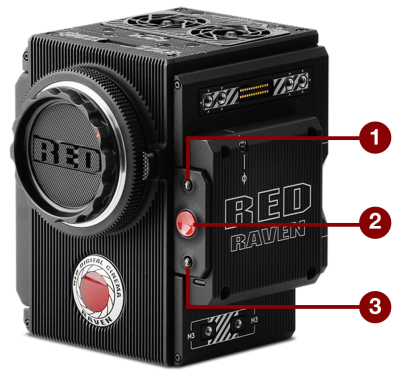

Figure: RED RAVEN Media Bay Controls
|
# |
Control |
Description |
|---|---|---|
|
1 |
User Key 1 |
Programmable key User Key 1 + 2 Press: Eject Media |
|
2 |
REC button |
Programmable key Full Press: Record Toggle Half Press: AF Start |
|
3 |
User Key 2 |
Programmable key User Key 1 + 2 Press: Eject Media |
For more information, see the DSMC Media Operation Guide.
Media Bay LEDs

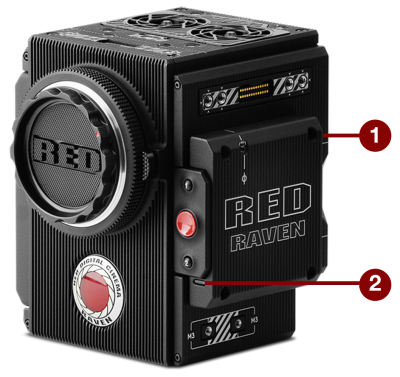

Figure: RED RAVEN Media Bay LEDs
This section describes the LED functions for the media bay.
|
# |
LED |
Color/Flashing |
Description |
|---|---|---|---|
|
1 |
Media Status LED (Back of media bay) |
Off |
No media mounted |
|
Green |
Preview; media mounted with > 10% of media space available |
||
|
Amber |
Record finalizing or playback mode |
||
|
Amber flashing (slow) |
Formatting media |
||
|
Red flashing (slow) |
Media mounted with > 5% and ≤ 10% of media space available |
||
|
Red flashing (fast) |
Media mounted with ≤ 5% of media space available |
||
|
Red |
Recording; media mounted with > 10% of media space available |
||
|
2 |
Record Status LED1 |
Off |
Not recording, or media not mounted |
|
Red |
Recording |
- For more information on how to enable/disable this LED, go to Indicator. If media is not mounted, this LED is off.
