Apple ProRes Information

By default, the camera records all videos and stills in the REDCODE RAW file format (records R3D files). You also have the option to record Apple ProRes files. This section provides general information about recording Apple ProRes files with the camera:

• The camera cannot record Apple ProRes when Pre-Record is enabled.
• The camera can record Apple ProRes only when either of the following recording modes is enabled:
  • Continuous Record
  • Motion + Stills
• Recording to R3D + Apple ProRes is not supported when the format is 4K FF.
• If HDRX^® is enabled, only the selected monitor track is recorded to the QuickTime files. For more information, go to HDRX Menu.
• RED recommends performing a Secure Format before recording Apple ProRes. For more information, see the DSMC Media Operation Guide.
• QuickTime files have the same metadata that is in the REDCODE RAW files. The metadata is per clip, and not per frame. At this time, there is no tool for extracting that metadata from the QuickTime files.
• You can select any resolution. When recording Apple ProRes, the camera scales that format to the Resolution (2K) selected in the Codec menu. The field of view is maintained in the QuickTime file; the image is not cropped.
• For more information about Apple ProRes, including the data rates for each codec, see the Apple Support site.
• To record Apple ProRes files, go to Select Record File Format.

File Structure of Recorded Apple ProRes Files

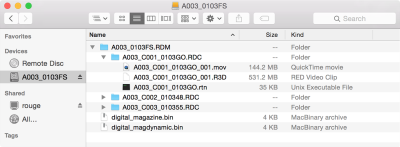

When recording R3D + Apple ProRes, this is the file structure of the recorded files on the SSD (when the SSD is formatted as FAT32):

• .RDM Folder
  • .RDC Folder
    • .mov
    • .R3D
    • .rtn (RED Thumbnail file)

NOTE: The camera creates mulitple .mov files, similar to how the camera creates multiple R3D files.

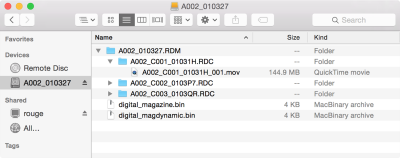

When recording Apple ProRes only, this is the file structure of the recorded files on the SSD (when the SSD is formatted as FAT32):

• .RDM Folder
  • .RDC Folder
    • .mov

NOTE: The camera creates mulitple .mov files, similar to how the camera creates multiple R3D files.
