Camera

Use the Camera menu to set up a unique identifier for your camera (or a group of cameras). All command filtering happens on the receiver side of the communication link. Use camera names and group names to address commands to a specific camera or group of networked cameras.

• Camera ID: Enter a unique camera name to use in network communications. The field is limited to eight (8) characters.
• Group ID: Enter a group name to identify the camera as a member of a group of devices. The field is limited to eight (8) characters, and the default name is DEFAULT.
• Target: Specify which devices the camera can send commands to:
  • All: The camera can send commands to all devices on the network.
  • None: The camera can only receive commands. The camera cannot send commands.
  • Custom: The camera can send commands to a specific camera/device (enter the name of the camera/device in the Target ID text box) or a specific group (enter the name of the group in the Target ID text box). The camera/group name must match the name entered in the Camera/Group field of the target device(s).

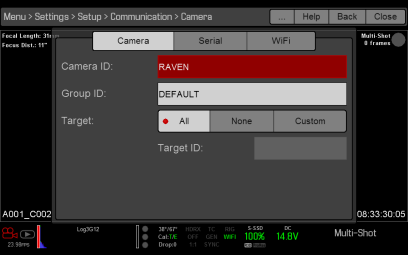

  Figure: Camera Menu
