DSMC2 V-Lock I/O Expander

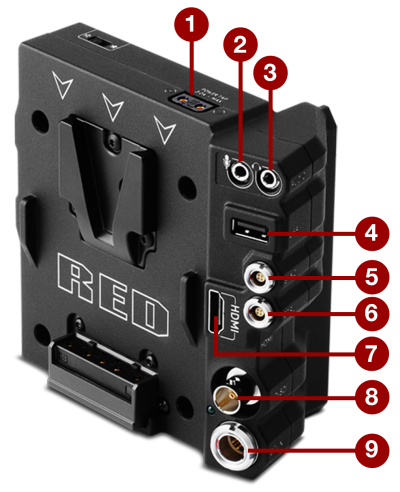

Figure: DSMC2 V-Lock I/O Expander
|
# |
Connector |
Connector Type |
Details |
|
1 |
AUX Power |
P-Tap 2-pin Female |
|
|
2 |
Stereo Microphone |
3.5mm stereo |
|
|
3 |
Headphone Jack |
3.5mm stereo |
|
|
4 |
USB Power |
USB 2.0, Type A (power only) |
|
|
5 |
SYNC |
4-pin 00B LEMO |
SYNC (Video Sync In) with Contact Closure Style Trigger Input |
|
6 |
CTRL |
4-pin 00B LEMO |
|
|
7 |
HDMI® |
HDMI 1.2, Type A |
|
|
8 |
HD-SDI |
BNC |
|
|
9 |
DC IN |
6-pin 1B LEMO |
