Create a Project

A REDCINE-X PRO project (.rcx file) is a way of organizing links and settings for multiple R3D files.

Follow the instructions below to create a project:

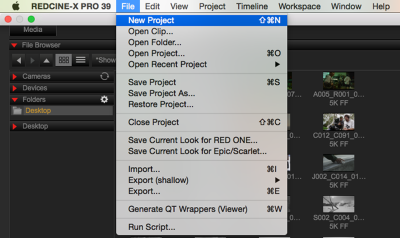

• Create before edits: Go to File > New Project.



Figure: Create New Project

• Create after edits: Go to File > Save Project or File > Save Project As....

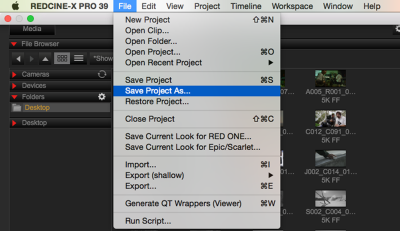

Figure: Save Project As

NOTE: Relocating or renaming R3D or audio files after you have synchronized audio changes the referenced file path and requires you to relink R3D files and resynchronize audio.

For more information, go to Edit and Sync Audio or Relink Missing Files.

Create a Sequence

A sequence is a series of clips on a timeline. To create a sequence, perform one of the following:

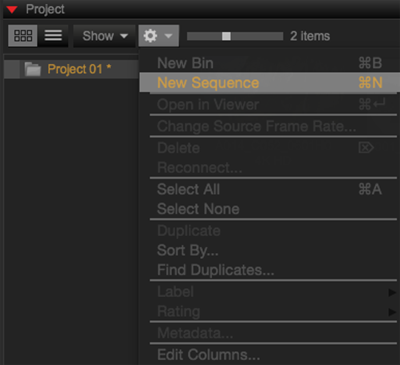

• Click (Gear Menu) and select New Sequence.



Figure: Create New Sequence from Gear Menu

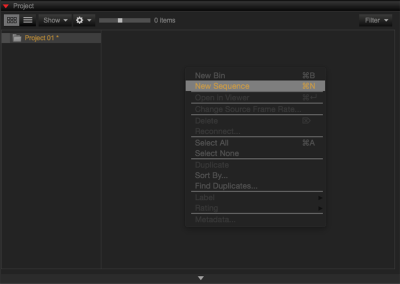

• Right-click in the Project group and select New Sequence.



Figure: Create New Sequence from Project Group

Create a Bin

A bin is a folder that includes clips. To create a bin, perform one of the following:

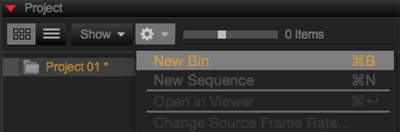

• Click (Gear Menu) and select New Bin.



Figure: Create New Bin from Gear Menu

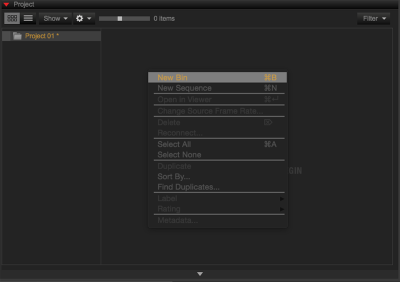

• Right-click in Project group and select New Bin.

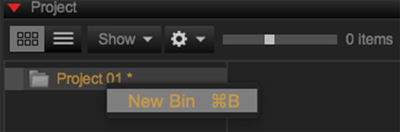

Figure: Create New Bin from Project Group

• Right-click a project folder and select New Bin.



Figure: Create New Bin from Project Folder

Filter Media

You can filter media in bins based on the label and rating. To apply a filter, click the Filter drop-down menu and select or deselect filter options. To add a label and rating to a bin or media clip, go to Bin Features.

Bin Features

To create a bin subfolder, label, delete, rename, or rate a bin, right-click a bin and select one of the following:

• New Bin: Create a bin subfolder.
• Label: Label the bin using different colors.
• Delete: Remove all clips inside the bin.
• Rename...: Rename the bin folder.
• Rating: Add rating stars to the bin.

Add R3D Files to a Project or Timeline

To add R3D files to a project or timeline, follow the instructions below:

1. Go to the File Browser tab.
2. Browse and find the R3D file(s) that you want.
3. Add the R3D file(s) to your project or timeline by performing one of the following:
   • Drag the R3D file to the Project tab.

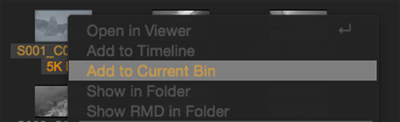

   • Select a Project folder. Then right-click an R3D file and select Add to Current Bin.



   Figure: Add R3D Files
