Edit 3D Clips

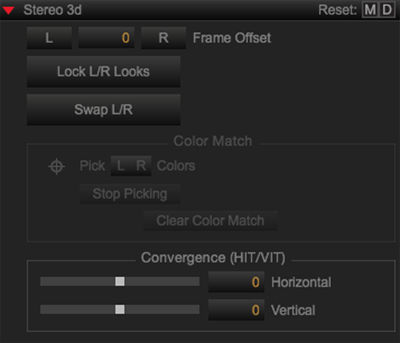

When a 3D clip is in the Bin and loaded in the Viewer, the Stereo 3D menu appears in the Look tab.

• Frame Offset: Allows offsetting of frames between the left and right clip
• Color Match: This feature is disabled
• Convergence: Adjusts the angle of the left and right clip in the Stereo 3D image
  • HIT: Horizontal Image Translation
  • VIT: Vertical Image Translation

NOTE: You must apply a crop set before applying convergence. Go to Sample 3D Workflow.

Stereo 3D Mode Options

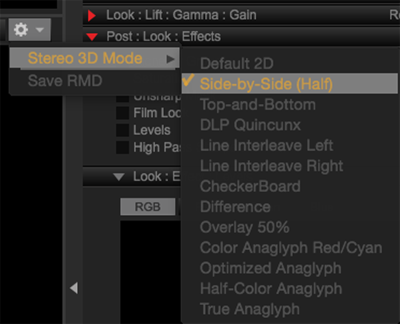

The following Stereo 3D mode options can be accessed in the Viewer Panel > Viewer Settings Menu > Stereo 3D Mode:

• Default 2D
• Side-by-side (half)
• Top-and-bottom
• DLP Quincunx
• Line Interleave Left
• Line Interleave Right
• CheckerBoard
• Difference
• Overlay 50%
• Color Anaglyph Red/Cyan
• Optimized Anaglyph
• Half-Color Anaglyph
• True Anaglyph

For more information, go to Sample 3D Workflow.
