Look Adjustments

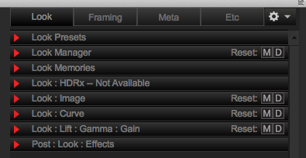

Figure: Look Tab
The Look tab contains tools for white balance, brightness, color saturation, tonal curve, and more. These tools are separated into groups that can be opened or hidden in an accordion-style to meet your workflow needs. To access Look groups, click the Look tab. Click the group bar that you want to expand/collapse. To add a group, right-click in any tab and select a Look group. Look groups include:
|
Look Group |
Description |
Details |
|---|---|---|
|
Look: Histogram |
Adjust histogram and scopes |
|
|
Look: HDRx |
Select HDRx tracks and blending options. Only available in R3D® files captured with HDRx enabled |
|
|
Look: Image |
Adjust the appearance of R3D footage |
|
|
Look: Curve |
Adjust the tonal curve |
|
|
Look: Lift: Gamma: Gain |
Adjust lift, gamma, and gain levels |
|
|
Post: Look: Effects1 |
Adjust alchemy, clarity, skin-tones, saturation, sharpness filters, levels, and film qualities |
|
|
Look Presets |
Select and apply Look presets |
|
|
Look Manager |
Create new Look presets |
- Post Look Effects are saved in the RMD file. Changes made in this group are applied to R3D files upon export. RED ROCKET® and RED ROCKET-X® do not accelerate clips with applied Post Effects.
