Control Bar
The Control bar provides basic shuttle controls and additional tools for reviewing and trimming footage. The RED PLAYER® offers a similar, but pared-down version of the same control bar.

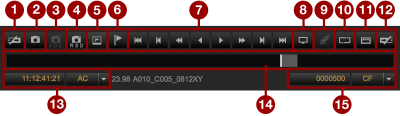

Figure: Control Bar
|
# |
Control |
Description |
Details |
|---|---|---|---|
|
1 |
Set In Point |
Set the start of the R3D clip |
|
|
2 |
Snapshot |
Export a still |
|
|
3 |
A.D.D. Snapshot1 |
Export a still with Advanced Dragon Debayer (A.D.D.) options |
|
|
4 |
R3D Snapshot |
Export a RAW still (R3D) |
|
|
5 |
Still Snapshot |
Add a frame to the Stills Tab in the Bottom Panel |
|
|
6 |
Set Marker |
Add a frame marker to the R3D metadata |
|
|
7 |
Shuttle Controls |
Navigate R3D clips |
|
|
8 |
Monitor Out |
Provides video out |
|
|
9 |
RED ROCKET, RED ROCKET-X |
Opens the Rocket Settings menu |
N/A2 |
|
10 |
Loop Playback |
Loop footage playback in forward or reverse play |
N/A |
|
11 |
Set Video Slate Point |
Set the beginning of the clip to sync audio |
|
|
12 |
Set Out Point |
Set the end of the R3D clip |
|
|
13 |
Frame Display Settings |
Select a display method for the frame information |
|
|
14 |
Scrub Bar |
Represents the entire length of the R3D clip |
N/A |
|
15 |
Playhead |
Displays the position of the current frame location; the gray area extending from the playhead represents buffered R3D footage |
N/A |
- Only for clips shot with a DRAGON sensor.
- For more information, see the RED ROCKET Installation Instructions or RED ROCKET-X Installation Instructions.
Frame Display Settings

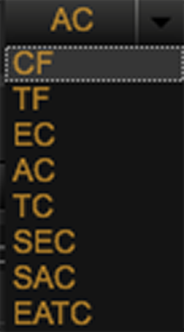

Figure: Frame Display Settings
Select a frame identifier type for the active R3D clip in the Viewer. Available options include:
- CF: Clip Frame displays current frame number based on metadata.
- TF: Timeline Frame displays current frame number based on position in the Timeline.
- EC: Edge Code displays clip edge code based on metadata.
- AC: Absolute Timecode displays Time of Day (TOD) timecode based on metadata.
- TC: Timeline Timecode displays current Timeline position regardless of position or amount of clips.
- SEC: Subclip Edge Timecode displays clip edge timecode for the currently active subclip based on metadata.
- SAC: Subclip Absolute Timecode displays clip absolute timecode for the currently active subclip.
- EATC: External Audio Timecode displays timecode for the attached external audio file.
