Panels
The paneled interface is designed to retain its shape and function, while being flexible enough to meet your needs. Panel borders are adjustable, enabling you to customize the size and space needed for your work.
You can perform the following actions:
- Show/Hide Panels:
- Click anywhere on a panel border that has a light gray arrow to show/hide a panel.
- Press Shift+Tab to show/hide all panels.
- Resize Panels: Hover the cursor over a panel border and drag the cursor until the panel is the size that you want.
Figure: Panels
Tabs
You can add, delete, resize, move, rename, import, and export tabs in any panel.
Figure: Tabs
- Add Tab: To create a tab, perform one of the following:
- Click
(Gear Menu) in any panel and select Add Tab.... - Right-click any of the existing tab headers and select Add....
- Click
- Populate Tab: Right-click a panel and select a group from the group drop-down menu.
- Delete Tab: To delete a tab, perform one of the following:
- Click (Gear Menu) and select Delete Tab....
- Right-click the tab and select Delete....
- Click
- Resize Tab: Hover the cursor over the edge of the tab and drag the cursor to resize the tab.
- Move Tab: Drag a tab to a location that you want in the panel.
- Rename Tab: To rename a tab, perform one of the following:
- Click (Gear Menu) and select Rename Tab....
- Right-click the tab and select Rename Tab....
- Click
- Import Tab: Click (Gear Menu) and select Import Tab....
- Export Tab: Click (Gear Menu) and select Export Tab....

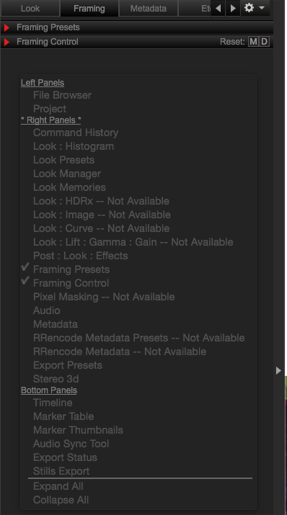

Tab Group Options
You can populate a tab in any panel with the following groups:
|
Group |
Description |
Details |
|---|---|---|
|
Audio |
View and synchronize audio clips |
Edit and Sync Audio |
|
Audio Sync Tool |
Synchronize audio clips |
Sync Audio with Auto Match |
|
Command History |
View command history |
N/A |
|
Export Presets |
Set export presets |
Export with Presets |
|
File Browser |
Browse files |
Browse Clips |
|
Framing Control |
Frame and crop R3D footage |
Frame Adjustments |
|
Framing Presets |
Create frame presets |
|
|
Look Curve |
Adjust the curve of an R3D file |
Look: Curve |
|
Look Manager |
Manage Looks |
Look Manager |
|
Look Memories |
Set Look Memories |
Look Memories |
|
Look Presets |
Set Look Presets |
Look Presets |
|
Look: HDRx |
Adjust HDRx |
Look: HDRx |
|
Look: Histogram |
Adjust the Histogram |
Look: Histogram |
|
Look: Image |
Adjust the appearance of R3D footage |
Look: Image |
|
Look: Lift: Gamma: Gain |
Adjust the Lift, Gamma, and Gain |
Look: Lift: Gamma: Gain |
|
Marker Thumbnails |
View marked frames in thumbnail view |
Marker Thumbnails |
|
Marker Table |
View marked frames |
Marker Table |
|
Metadata |
Metadata information for the active R3D in the Viewer |
View R3D Metadata |
|
Post: Look: Effects |
Adjust the appearance and settings of R3D footage |
Post: Look: Effects |
|
Project |
Organize R3D files |
Create a Project |
|
Stereo 3D |
Edit 3D clips |
Edit 3D Clips |
|
Stills Export |
Export stills |
Stills Export |
|
Timeline |
Add/modify clips |
Add R3D Files to a Project or Timeline |
|
RRencode Metadata Presets |
Set RRencode Presets1 |
RRencode Workflow |
|
RRencode Metadata |
View RRencode Metadata1 |
- Only available when you install RRencode. For more information, go to Install RRencode Plugin.
